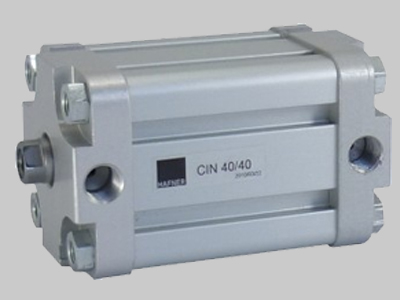

Kompakt henger
 ISO 21287




Kettősműködésű henger
érintésmentes érzékeléssel
CIN: Belső menetes dugattyúrúddal
CIF: Külső menetes dugattyúrúddal

Henger: eloxált alumínium profil
Fedelek: forgácsolt, eloxált alumínium
Dugattyúrúd: keménykrómozott acél
Vezetőpersely: szinterbronz
Tömítések: poliuretán, NBR

Közelítéskapcsolók rögzítése a profilcső-horonyban


 Jelölés:


 		 Profilcső metszet:



Típus Hengerátmérő Lökethossz Csatlakozás Dugattyúrúd menete Üzemi nyomás
CIN | CIF 32/5 Ø32mm 5mm G1/8" M8 1-10 bar
CIN | CIF 32/10 Ø32mm 10mm G1/8" M8 1-10 bar
CIN | CIF 32/15 Ø32mm 15mm G1/8" M8 1-10 bar
CIN | CIF 32/20 Ø32mm 20mm G1/8" M8 1-10 bar
CIN | CIF 32/25 Ø32mm 25mm G1/8" M8 1-10 bar
CIN | CIF 32/30 Ø32mm 30mm G1/8" M8 1-10 bar
CIN | CIF 32/40 Ø32mm 40mm G1/8" M8 1-10 bar
CIN | CIF 32/50 Ø32mm 50mm G1/8" M8 1-10 bar
CIN | CIF 32/60 Ø32mm 60mm G1/8" M8 1-10 bar
CIN | CIF 32/80 Ø32mm 80mm G1/8" M8 1-10 bar
CIN | CIF 32/100 Ø32mm 100mm G1/8" M8 1-10 bar
CIN | CIF 32/125 Ø32mm 125mm G1/8" M8 1-10 bar
CIN | CIF 32/160 Ø32mm 160mm G1/8" M8 1-10 bar
CIN | CIF 32/200 Ø32mm 200mm G1/8" M8 1-10 bar
CIN | CIF 32/250 Ø32mm 250mm G1/8" M8 1-10 bar
CIN | CIF 32/320 Ø32mm 320mm G1/8" M8 1-10 bar
CIN | CIF 32/400 Ø32mm 400mm G1/8" M8 1-10 bar
CIN | CIF 40/5 Ø40mm 5mm G1/8" M8 1-10 bar
CIN | CIF 40/10 Ø40mm 10mm G1/8" M8 1-10 bar
CIN | CIF 40/15 Ø40mm 15mm G1/8" M8 1-10 bar
CIN | CIF 40/20 Ø40mm 20mm G1/8" M8 1-10 bar
CIN | CIF 40/25 Ø40mm 25mm G1/8" M8 1-10 bar
CIN | CIF 40/30 Ø40mm 30mm G1/8" M8 1-10 bar
CIN | CIF 40/40 Ø40mm 40mm G1/8" M8 1-10 bar
CIN | CIF 40/50 Ø40mm 50mm G1/8" M8 1-10 bar
CIN | CIF 40/60 Ø40mm 60mm G1/8" M8 1-10 bar
CIN | CIF 40/80 Ø40mm 80mm G1/8" M8 1-10 bar
CIN | CIF 40/100 Ø40mm 100mm G1/8" M8 1-10 bar
CIN | CIF 40/125 Ø40mm 125mm G1/8" M8 1-10 bar
CIN | CIF 40/160 Ø40mm 160mm G1/8" M8 1-10 bar
CIN | CIF 40/200 Ø40mm 200mm G1/8" M8 1-10 bar
CIN | CIF 40/250 Ø40mm 250mm G1/8" M8 1-10 bar
CIN | CIF 40/320 Ø40mm 320mm G1/8" M8 1-10 bar
CIN | CIF 40/400 Ø40mm 400mm G1/8" M8 1-10 bar
CIN | CIF 50/5 Ø50mm 5mm G1/8" M10 1-10 bar
CIN | CIF 50/10 Ø50mm 10mm G1/8" M10 1-10 bar
CIN | CIF 50/15 Ø50mm 15mm G1/8" M10 1-10 bar
CIN | CIF 50/20 Ø50mm 20mm G1/8" M10 1-10 bar
CIN | CIF 50/25 Ø50mm 25mm G1/8" M10 1-10 bar
CIN | CIF 50/30 Ø50mm 30mm G1/8" M10 1-10 bar
CIN | CIF 50/40 Ø50mm 40mm G1/8" M10 1-10 bar
CIN | CIF 50/50 Ø50mm 50mm G1/8" M10 1-10 bar
CIN | CIF 50/60 Ø50mm 60mm G1/8" M10 1-10 bar
CIN | CIF 50/80 Ø50mm 80mm G1/8" M10 1-10 bar
CIN | CIF 50/100 Ø50mm 100mm G1/8" M10 1-10 bar
CIN | CIF 50/125 Ø50mm 125mm G1/8" M10 1-10 bar
CIN | CIF 50/160 Ø50mm 160mm G1/8" M10 1-10 bar
CIN | CIF 50/200 Ø50mm 200mm G1/8" M10 1-10 bar
CIN | CIF 50/250 Ø50mm 250mm G1/8" M10 1-10 bar
CIN | CIF 50/320 Ø50mm 320mm G1/8" M10 1-10 bar
CIN | CIF 50/400 Ø50mm 400mm G1/8" M10 1-10 bar
CIN | CIF 63/5 Ø63mm 5mm G1/8" M10 1-10 bar
CIN | CIF 63/10 Ø63mm 10mm G1/8" M10 1-10 bar
CIN | CIF 63/15 Ø63mm 15mm G1/8" M10 1-10 bar
CIN | CIF 63/20 Ø63mm 20mm G1/8" M10 1-10 bar
CIN | CIF 63/25 Ø63mm 25mm G1/8" M10 1-10 bar
CIN | CIF 63/30 Ø63mm 30mm G1/8" M10 1-10 bar
CIN | CIF 63/40 Ø63mm 40mm G1/8" M10 1-10 bar
CIN | CIF 63/50 Ø63mm 50mm G1/8" M10 1-10 bar
CIN | CIF 63/60 Ø63mm 60mm G1/8" M10 1-10 bar
CIN | CIF 63/80 Ø63mm 80mm G1/8" M10 1-10 bar
CIN | CIF 63/100 Ø63mm 100mm G1/8" M10 1-10 bar
CIN | CIF 63/125 Ø63mm 125mm G1/8" M10 1-10 bar
CIN | CIF 63/160 Ø63mm 160mm G1/8" M10 1-10 bar
CIN | CIF 63/200 Ø63mm 200mm G1/8" M10 1-10 bar
CIN | CIF 63/250 Ø63mm 250mm G1/8" M10 1-10 bar
CIN | CIF 63/320 Ø63mm 320mm G1/8" M10 1-10 bar
CIN | CIF 63/400 Ø63mm 400mm G1/8" M10 1-10 bar
CIN | CIF 80/5 Ø80mm 5mm G1/8" M12 1-10 bar
CIN | CIF 80/10 Ø80mm 10mm G1/8" M12 1-10 bar
CIN | CIF 80/15 Ø80mm 15mm G1/8" M12 1-10 bar
CIN | CIF 80/20 Ø80mm 20mm G1/8" M12 1-10 bar
CIN | CIF 80/25 Ø80mm 25mm G1/8" M12 1-10 bar
CIN | CIF 80/30 Ø80mm 30mm G1/8" M12 1-10 bar
CIN | CIF 80/40 Ø80mm 40mm G1/8" M12 1-10 bar
CIN | CIF 80/50 Ø80mm 50mm G1/8" M12 1-10 bar
CIN | CIF 80/60 Ø80mm 60mm G1/8" M12 1-10 bar
CIN | CIF 80/80 Ø80mm 80mm G1/8" M12 1-10 bar
CIN | CIF 80/100 Ø80mm 100mm G1/8" M12 1-10 bar
CIN | CIF 80/125 Ø80mm 125mm G1/8" M12 1-10 bar
CIN | CIF 80/160 Ø80mm 160mm G1/8" M12 1-10 bar
CIN | CIF 80/200 Ø80mm 200mm G1/8" M12 1-10 bar
CIN | CIF 80/250 Ø80mm 250mm G1/8" M12 1-10 bar
CIN | CIF 80/320 Ø80mm 320mm G1/8" M12 1-10 bar
CIN | CIF 80/400 Ø80mm 400mm G1/8" M12 1-10 bar
CIN | CIF 100/5 Ø100mm 5mm G1/4" M16 1-10 bar
CIN | CIF 100/10 Ø100mm 10mm G1/4" M16 1-10 bar
CIN | CIF 100/15 Ø100mm 15mm G1/4" M16 1-10 bar
CIN | CIF 100/20 Ø100mm 20mm G1/4" M16 1-10 bar
CIN | CIF 100/25 Ø100mm 25mm G1/4" M16 1-10 bar
CIN | CIF 100/30 Ø100mm 30mm G1/4" M16 1-10 bar
CIN | CIF 100/40 Ø100mm 40mm G1/4" M16 1-10 bar
CIN | CIF 100/50 Ø100mm 50mm G1/4" M16 1-10 bar
CIN | CIF 100/60 Ø100mm 60mm G1/4" M16 1-10 bar
CIN | CIF 100/80 Ø100mm 80mm G1/4" M16 1-10 bar
CIN | CIF 100/100 Ø100mm 100mm G1/4" M16 1-10 bar
CIN | CIF 100/125 Ø100mm 125mm G1/4" M16 1-10 bar
CIN | CIF 100/160 Ø100mm 160mm G1/4" M16 1-10 bar
CIN | CIF 100/200 Ø100mm 200mm G1/4" M16 1-10 bar
CIN | CIF 100/250 Ø100mm 250mm G1/4" M16 1-10 bar
CIN | CIF 100/320 Ø100mm 320mm G1/4" M16 1-10 bar
CIN | CIF 100/400 Ø100mm 400mm G1/4" M16 1-10 bar

A fenti táblázattól eltérő méretek is rendelhetőek.









Egyéb típusokért és gyártmányokért keresse munkatársunkat!
