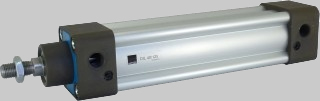

Kettősműködésű henger
állítható véghelyzet-csillapítással | érintésmentes érzékeléssel

Henger: eloxált alumínium profil
Fedelek: présöntött alumínium
Dugattyúrúd: keménykrómozott acél
Vezetőpersely: szinterbronz
Tömítések: poliuretán, NBR


 Jelölés:




 Profilcső metszet:




Típus Hengerátmérő Lökethossz Csatlakozás Dugattyúrúd menete Üzemi nyomás
DIL 32/25 Ø32mm 25mm G1/8" M10 x 1,25 1-10 bar
DIL 32/50 Ø32mm 50mm G1/8" M10 x 1,25 1-10 bar
DIL 32/80 Ø32mm 80mm G1/8" M10 x 1,25 1-10 bar
DIL 32/100 Ø32mm 100mm G1/8" M10 x 1,25 1-10 bar
DIL 32/125 Ø32mm 125mm G1/8" M10 x 1,25 1-10 bar
DIL 32/160 Ø32mm 160mm G1/8" M10 x 1,25 1-10 bar
DIL 32/200 Ø32mm 200mm G1/8" M10 x 1,25 1-10 bar
DIL 32/250 Ø32mm 250mm G1/8" M10 x 1,25 1-10 bar
DIL 32/320 Ø32mm 320mm G1/8" M10 x 1,25 1-10 bar
DIL 32/400 Ø32mm 400mm G1/8" M10 x 1,25 1-10 bar
DIL 32/500 Ø32mm 500mm G1/8" M10 x 1,25 1-10 bar
DIL 32/600 Ø32mm 600mm G1/8" M10 x 1,25 1-10 bar
DIL 32/700 Ø32mm 700mm G1/8" M10 x 1,25 1-10 bar
DIL 32/800 Ø32mm 800mm G1/8" M10 x 1,25 1-10 bar
DIL 32/900 Ø32mm 900mm G1/8" M10 x 1,25 1-10 bar
DIL 32/1000 Ø32mm 1000mm G1/8" M10 x 1,25 1-10 bar
DIL 40/25 Ø40mm 25mm G1/4" M12 x 1,25 1-10 bar
DIL 40/50 Ø40mm 50mm G1/4" M12 x 1,25 1-10 bar
DIL 40/80 Ø40mm 80mm G1/4" M12 x 1,25 1-10 bar
DIL 40/100 Ø40mm 100mm G1/4" M12 x 1,25 1-10 bar
DIL 40/125 Ø40mm 125mm G1/4" M12 x 1,25 1-10 bar
DIL 40/160 Ø40mm 160mm G1/4" M12 x 1,25 1-10 bar
DIL 40/200 Ø40mm 200mm G1/4" M12 x 1,25 1-10 bar
DIL 40/250 Ø40mm 250mm G1/4" M12 x 1,25 1-10 bar
DIL 40/320 Ø40mm 320mm G1/4" M12 x 1,25 1-10 bar
DIL 40/400 Ø40mm 400mm G1/4" M12 x 1,25 1-10 bar
DIL 40/500 Ø40mm 500mm G1/4" M12 x 1,25 1-10 bar
DIL 40/600 Ø40mm 600mm G1/4" M12 x 1,25 1-10 bar
DIL 40/700 Ø40mm 700mm G1/4" M12 x 1,25 1-10 bar
DIL 40/800 Ø40mm 800mm G1/4" M12 x 1,25 1-10 bar
DIL 40/900 Ø40mm 900mm G1/4" M12 x 1,25 1-10 bar
DIL 40/1000 Ø40mm 1000mm G1/4" M12 x 1,25 1-10 bar
DIL 50/25 Ø50mm 25mm G1/4" M16 x 1,25 1-10 bar
DIL 50/50 Ø50mm 50mm G1/4" M16 x 1,25 1-10 bar
DIL 50/80 Ø50mm 80mm G1/4" M16 x 1,25 1-10 bar
DIL 50/100 Ø50mm 100mm G1/4" M16 x 1,25 1-10 bar
DIL 50/125 Ø50mm 125mm G1/4" M16 x 1,25 1-10 bar
DIL 50/160 Ø50mm 160mm G1/4" M16 x 1,25 1-10 bar
DIL 50/200 Ø50mm 200mm G1/4" M16 x 1,25 1-10 bar
DIL 50/250 Ø50mm 250mm G1/4" M16 x 1,25 1-10 bar
DIL 50/320 Ø50mm 320mm G1/4" M16 x 1,25 1-10 bar
DIL 50/400 Ø50mm 400mm G1/4" M16 x 1,25 1-10 bar
DIL 50/500 Ø50mm 500mm G1/4" M16 x 1,25 1-10 bar
DIL 50/600 Ø50mm 600mm G1/4" M16 x 1,25 1-10 bar
DIL 50/700 Ø50mm 700mm G1/4" M16 x 1,25 1-10 bar
DIL 50/800 Ø50mm 800mm G1/4" M16 x 1,25 1-10 bar
DIL 50/900 Ø50mm 900mm G1/4" M16 x 1,25 1-10 bar
DIL 50/1000 Ø50mm 1000mm G1/4" M16 x 1,25 1-10 bar
DIL 63/25 Ø63mm 25mm G1/4" M16 x 1,25 1-10 bar
DIL 63/50 Ø63mm 50mm G3/8" M16 x 1,25 1-10 bar
DIL 63/80 Ø63mm 80mm G3/8" M16 x 1,25 1-10 bar
DIL 63/100 Ø63mm 100mm G3/8" M16 x 1,25 1-10 bar
DIL 63/125 Ø63mm 125mm G3/8" M16 x 1,25 1-10 bar
DIL 63/160 Ø63mm 160mm G3/8" M16 x 1,25 1-10 bar
DIL 63/200 Ø63mm 200mm G3/8" M16 x 1,25 1-10 bar
DIL 63/250 Ø63mm 250mm G3/8" M16 x 1,25 1-10 bar
DIL 63/320 Ø63mm 320mm G3/8" M16 x 1,25 1-10 bar
DIL 63/400 Ø63mm 400mm G3/8" M16 x 1,25 1-10 bar
DIL 63/500 Ø63mm 500mm G3/8" M16 x 1,25 1-10 bar
DIL 63/600 Ø63mm 600mm G3/8" M16 x 1,25 1-10 bar
DIL 63/700 Ø63mm 700mm G3/8" M16 x 1,25 1-10 bar
DIL 63/800 Ø63mm 800mm G3/8" M16 x 1,25 1-10 bar
DIL 63/900 Ø63mm 900mm G3/8" M16 x 1,25 1-10 bar
DIL 63/1000 Ø63mm 1000mm G3/8" M16 x 1,25 1-10 bar
DIL 80/25 Ø80mm 25mm G3/8" M20 x 1,25 1-10 bar
DIL 80/50 Ø80mm 50mm G3/8" M20 x 1,25 1-10 bar
DIL 80/80 Ø80mm 80mm G3/8" M20 x 1,25 1-10 bar
DIL 80/100 Ø80mm 100mm G3/8" M20 x 1,25 1-10 bar
DIL 80/125 Ø80mm 125mm G3/8" M20 x 1,25 1-10 bar
DIL 80/160 Ø80mm 160mm G3/8" M20 x 1,25 1-10 bar
DIL 80/200 Ø80mm 200mm G3/8" M20 x 1,25 1-10 bar
DIL 80/250 Ø80mm 250mm G3/8" M20 x 1,25 1-10 bar
DIL 80/320 Ø80mm 320mm G3/8" M20 x 1,25 1-10 bar
DIL 80/400 Ø80mm 400mm G3/8" M20 x 1,25 1-10 bar
DIL 80/500 Ø80mm 500mm G3/8" M20 x 1,25 1-10 bar
DIL 80/600 Ø80mm 600mm G3/8" M20 x 1,25 1-10 bar
DIL 80/700 Ø80mm 700mm G3/8" M20 x 1,25 1-10 bar
DIL 80/800 Ø80mm 800mm G3/8" M20 x 1,25 1-10 bar
DIL 80/900 Ø80mm 900mm G3/8" M20 x 1,25 1-10 bar
DIL 80/1000 Ø80mm 1000mm G3/8" M20 x 1,25 1-10 bar
DIL 100/25 Ø100mm 25mm G1/2" M20 x 1,25 1-10 bar
DIL 100/50 Ø100mm 50mm G1/2" M20 x 1,25 1-10 bar
DIL 100/80 Ø100mm 80mm G1/2" M20 x 1,25 1-10 bar
DIL 100/100 Ø100mm 100mm G1/2" M20 x 1,25 1-10 bar
DIL 100/125 Ø100mm 125mm G1/2" M20 x 1,25 1-10 bar
DIL 100/160 Ø100mm 160mm G1/2" M20 x 1,25 1-10 bar
DIL 100/200 Ø100mm 200mm G1/2" M20 x 1,25 1-10 bar
DIL 100/250 Ø100mm 250mm G1/2" M20 x 1,25 1-10 bar
DIL 100/320 Ø100mm 320mm G1/2" M20 x 1,25 1-10 bar
DIL 100/400 Ø100mm 400mm G1/2" M20 x 1,25 1-10 bar
DIL 100/500 Ø100mm 500mm G1/2" M20 x 1,25 1-10 bar
DIL 100/600 Ø100mm 600mm G1/2" M20 x 1,25 1-10 bar
DIL 100/700 Ø100mm 700mm G1/2" M20 x 1,25 1-10 bar
DIL 100/800 Ø100mm 800mm G1/2" M20 x 1,25 1-10 bar
DIL 100/900 Ø100mm 900mm G1/2" M20 x 1,25 1-10 bar
DIL 100/1000 Ø100mm 1000mm G1/2" M20 x 1,25 1-10 bar
DIL 125/25 Ø125mm 25mm G1/2" M27 x 2 1-10 bar
DIL 125/50 Ø125mm 50mm G1/2" M27 x 2 1-10 bar
DIL 125/80 Ø125mm 80mm G1/2" M27 x 2 1-10 bar
DIL 125/100 Ø125mm 100mm G1/2" M27 x 2 1-10 bar
DIL 125/125 Ø125mm 125mm G1/2" M27 x 2 1-10 bar
DIL 125/160 Ø125mm 160mm G1/2" M27 x 2 1-10 bar
DIL 125/200 Ø125mm 200mm G1/2" M27 x 2 1-10 bar
DIL 125/250 Ø125mm 250mm G1/2" M27 x 2 1-10 bar
DIL 125/320 Ø125mm 320mm G1/2" M27 x 2 1-10 bar
DIL 125/400 Ø125mm 400mm G1/2" M27 x 2 1-10 bar
DIL 125/500 Ø125mm 500mm G1/2" M27 x 2 1-10 bar
DIL 125/600 Ø125mm 600mm G1/2" M27 x 2 1-10 bar
DIL 125/700 Ø125mm 700mm G1/2" M27 x 2 1-10 bar
DIL 125/800 Ø125mm 800mm G1/2" M27 x 2 1-10 bar
DIL 125/900 Ø125mm 900mm G1/2" M27 x 2 1-10 bar
DIL 125/1000 Ø125mm 1000mm G1/2" M27 x 2 1-10 bar

A fenti táblázattól eltérő méretek is rendelhetőek.









Egyéb típusokért és gyártmányokért keresse munkatársunkat!
